Portable Half Cell – Submersible Ag/AgCl Reference Cells – Fontana 103S

Portable Marine Service Reference Cell – Silver/Silver Chloride

Description

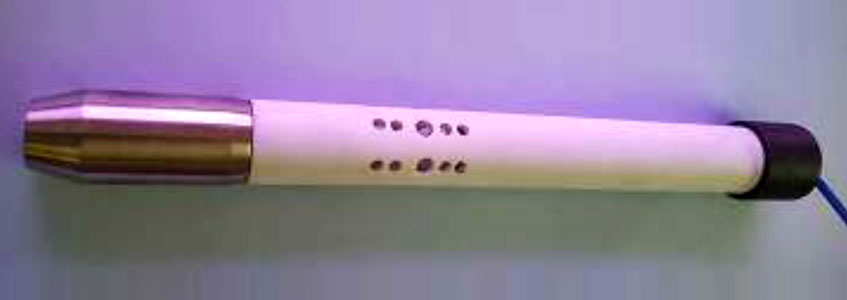

Fontana Instruments offers new portable silver -silver chloride reference cell to measure electrical potentials for corrosion engineers in marine services. This electrode is recommended for measurement of electric potentials between contact points for surveying purpose.

Features:

Rugged ultraviolet and chemically resistant inert ceramic tubing especially embedded into PVC body with several holes makes easy survey in the sea right from sea shore to deep sea survey. Continuous water retaining and draining capability for the ideal survey at all time. For deep sea water applications, reference cells are fitted with insulated cable along with dummy weight and nylon rope to float in sea water.

Specially made ceramic with preheated uniform, controlled ceramic porosity assist silver- silver chloride wire reduce electrical resistance and no requirement of moistening. Excellent shelf life and highest sensing area allows measurements with stability.

Long Life: Designed long life reference cell

Applications:

Direct insertion to see water reference. It can be used for fresh water, brackish water, marine and offshore with or without chlorides. Reference cells are supplied with 15 feet (5 mts) 4mm sq. insulated copper wire along dummy weight and nylon rope to floating in deep sea water to assist survey from ship, boat, barges.

Specifications:

Dimensions 25mm OD x 250mm long (1” x 8” long)
25 Oz (750gms)
Stability ± 5mv
Temperature 0-50º C
Certification Tested and provided with batch test certificate
Safety Material safety data sheet also available on request
Shipping Reference cells are shipped quickly based on quantity ordered
