Dry Film Thickness Gauge


Using magnetic induction or Eddy current, this electronic gauge offers precision thickness measurement of non magnetic coatings such as paints, zinc etc. on steel(F:ferrous probe), and insulating materials on non-ferrous substrates(FN:non-ferrous.). The gauge is available with either integral or external F, N or dual FN probes. The FN probe features automatic substrate recognition to simplify operation.

Biuged offer many different types of thickness Gauges to meet with different clients’ request under different conditions.

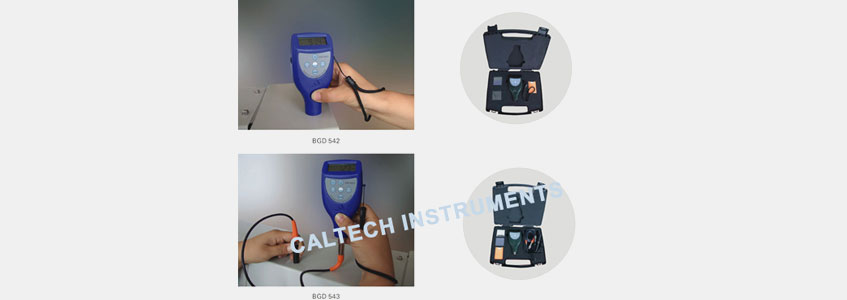

Ordering Information→ BGD 542/1 BGD  542/2 BGD 542/3 BGD 543/1 BGD 543/2
Type In built probes With separate probes
Operating principle Only F F&NF Only NF Only F F&NF
Measuring range 0-1250μm/0-50mil
Resolution 0.1/1
Accuracy ±1-3% or ±2.5μm
Min. radius work piece F:Convex 1.5mm/Concave 25mm;N: Convex 3mm/Concave 50mm
Min. measuring area 6mm
Min. sample thickness 0.3mm
Metric/ imperial Convertible
Power supply 4×1.5V AA Battery
Battery indicator Low battery indicator
Operating conditions 0-40℃;10-90%RH
Dimension 126×65×27mm
Weight 81g
Standard delivery Main unit
F type probe  ✓
N type probe  ✓
F calibration base set  ✓
N calibration base set  ✓
Calibration foil set
Carrying case
Instruction manual
Optional Accessories Cable &software for RS-232C
