Cylindrical Mandrel Bend Tester

Synonym : Cylindrical Mandrel Bending Tester, Paint Film Bend Tester


Caltech India offers BGD 563 Cylindrical Mandrel Bend Tester. It is very easy to use instrument to test and determine elasticity, adhesion and elongation properties of coated metal sheet like powder coating, paint, varnish or related product. Cylindrical mandrel tester panel holder accepts panels measuring up to 50mm (2″) wide, which are held firmly by the clamp. BS EN ISO 15015 calls for panels of 50mm x 100mm, of a thickness of up to 1mm. It complies with ISO 1519, ASTM D522 and DIN 53152. It is used to assess the coating layers of the pigmented paints, the varnishes and relevant products. It is special instrument for testing crack resistance or stripping performances from the metal plates at bending around the cylindrical shaft. Procedures can be based on pass/fail or diameter to failure methods.

Cylindrical mandrel bend tester is used to test the resistance of a coating of paint, varnish or related product to cracking or detachment from a metal panel, after the panel has been bent around a cylindrical mandrel. Cylindrical mandrel test is a very easy and used as a simple pass/fail test at a known diameter, by using successively smaller mandrels until cracking is observed. Sample later can be used for examining the coating for cracking, flaking, or other damage. Cylindrical mandrel bend tester can be adjusted to the diameter of the mandrel used and the mandrels are easily interchangeable.

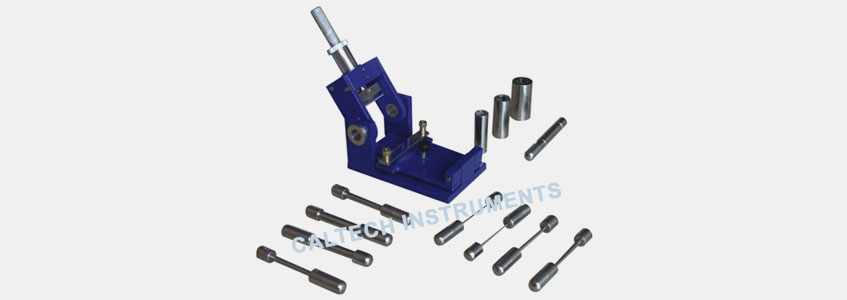

Our cylindrical mandrel bend machine / tester is included with basic testing frame from steel and supplied with 12 mandrels of high quality stainless steel material.

Cylindrical mandrel chamber or cylindrical mandrel bend tester is supplied with mandrel rod diameter of sizes: 2, 3, 4, 5, 6, 8, 10, 12, 16, 20, 25, 36mm.

Main Technical Parameters:

  • Robust stainless steel mandrels, easy to install in seconds
  • Sturdy pre-drilled frame ready to secure on workbench.
  • Shaft stick diameter: 2mm, 3mm, 4mm, 5mm, 6mm, 8mm, 10mm, 12mm, 16mm, 20mm, 25mm, 32mm
  • Thickness of bottom material for the test plate: 50mm width and thickness is less than 1.0mm

Ordering Information:

BGD 563 Cylindrical Mandrel Tester
