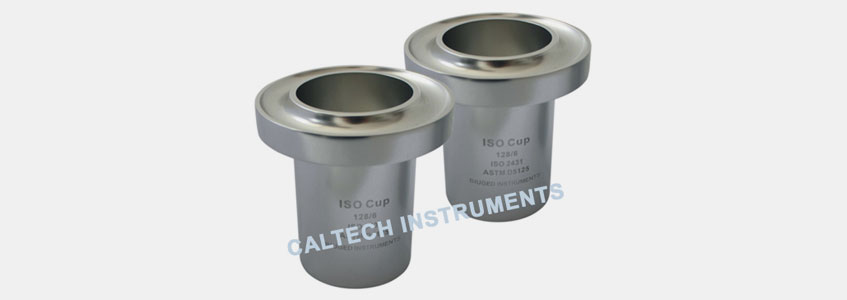

ISO Flow Cups

Synonym : ISO Flow Cups, ISO Viscosity Flow Cups, Viscosity Flow Cups, Flow Cups, Viscosity Measuring Cup


ISO Flow Cups produced by our company are in accordance with International Standard ISO 2431, DIN 53224, EN 535, ASTM D5125 (Paints and varnishes-Determination of flow time by Use of Flow Cups(Fourth edition)). They are made of high quality aluminum and feature stainless steel nozzle inserts (specification dependent). They are mirror polished & smooth finished for high efflux accuracy and easy maintenance. ISO Flow Cups are applicable to determine the flow time of Newtonian and near Newtonian fluids.

Main Technical Parameters:

  • Material:Anodized Aluminum
  • Weight:0.38 Kg

Ordering Information:

Details/ISO cup ISO-3 ISO-4 ISO-5 ISO-6 ISO-8
Orifice ф(mm/inches) 3.0 4.0 5.0 6.0 8.0
Range (seconds) 25-150 30-100 30-100 30-100 30-100
 Range  (cS t) 7-42 34-135 91-326 188-684 600-2000
Ordering Information BGD 128/3 BGD 128/4 BGD 128/5 BGD 128/6 BGD 128/8
