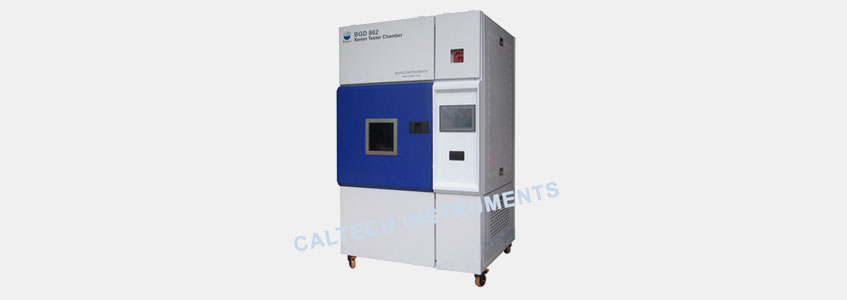

BGD 862 Xenon Test Chamber


BGD 862 Xenon Test Chamber is multi-function big xenon light accelerated weathering testers which are equipped with one piece high power (4.5KW or 6.5KW)water-cooling xenon lamp, their exposure area arrive 6,500cm2.

Functions and Characters:

  • Equipped with ATLAS xenon arc lamp , filter and components, ensure to get high and same running parameters. Test results have a good reliability and repeatability comparing with import machines.
  • Touch screen and user-friendly operation interface allow handlers set the test parameters and monitor all the test process easily.
  • Rotating sample rack maximizes exposure uniformity over all specimens
  • Automatic control system to irradiance energy for Narrow band (340 nm or 420 nm) or broad band (300~400nm)is selectable, and have real-time monitoring and showing functions. Can meet many globe test requirements.
  • Controlled irradiance:Up to 2-sun levels for higher acceleration based on your test requirements
  • Irradiance can be controlled and adjusted, and have a good stability.
  • Sample temperature, black panel temperature(BPT)and black standard temperature(BST)can be real-time monitored, controlled. Have a good stability and repeatability during the whole test.
  • Control both air temperature and sample surface temperature (BPT and BST)
  • Adjustable and controllable relative humidity, can meet the rigorous test methods
  • Real-time data can be collected and recorded. The incidental USB connector allow users to copy the test data into a USB drive, achieving unattended operation.
  • Can select TCP/IP Ethernet interface, the user can tele-control the machine through TCP/IP internet.
  • The test procedures can be programmed freely; and up to 16 predetermined procedures can be saved in one time. Every procedure includes up to 10 segments setting data.
  • Control temperature more precisely through air door, avoiding effect accuracy and repeatability of test result because of the relative humidity and laboratory variability.
  • Equipment for producing deionized water is selectable. With high purity water, operator can get a more reliable testing result,Chamber has alarm function for monitoring water.

Main Technical Parameters:

Ordering Information →
Technical Item ↓
BGD 862 Xenon Test Chamber
Xenon Lamp 6.5 KW water cooling long arc xenon lamp
Light Filter Import originally from ATLAS, can simulate indoor or outdoor sunshine spectrum
Exposure Area 6,500 cm2
Wave Length of Xenon Spectrum Can select 300-800nm(simulate sunshine,filtrate all wavelength under 300nm)or280-800nm (Add UV wave,keep some short-wave of UV)
Adjustable Irradiance 0.35~1.5 W/ m2 (Single point of control: 340nm)
0.7~4.0 W/ m2 (Single point of control: 420nm)
30 W/m2~150 W/ m2 (Full spectrum :from 300~400nm)
Lifetime of lamps 2,000 hours
Adjustable BPT RT+10℃~100℃
Temperature Stability ±1℃
Temperature Uniformity ≤2℃
Temperature Declination ≤±1℃
Adjustable Humidity Light:10%-85%    Dark:10%-95%
Rotate speed of sample 1~7 r/min(circle as lamp centre)
Spray Time Can set spray continuous time and spray period
Machine producing deionized water Size:620*650*1600(L*W*H)
Water for Chamber High purity deionized water(Conductivity<2us/cm)
Flow of Deionized Water Adding humidity:0.2L/min;Spray:0.2L/min
Overall Size 1,200*1,200*2,000mm(L*W*H)
Weight 700 KG
Cabinet Material Whole chamber is made up of good quality stainless steel (SUS304)
Chamber Door Simple door to left with filter window;silicon rubber seal the door edge
Sample Crack Stainless steel material, its position in the chamber can be adjusted
(up, middle or down), Sample crack rotate around the centre of lamp
Controller Siemens programmable controller. LCD touch-screen
Way of adding humidity Add humidity by ultrasonic humidifier
Black panel thermometer Heat insulate type black standard thermometer
Cooling System Cooled by compressor and forced-air blast system
Security Protections And Error Protections
Xenon Lamp Protect Protection to cooling water for xenon lamp shortage.   Protection to big irradiance deviation for a long time
Water Shortage Protection With water shortage protecting equipment in the water bath. Once the water bath is out of water, the controller will alarm automatically and record it
Power Source Protect Protection for shortage phase and phase sequence
Working Room Temperature Protect Individual over-temperature protection of working room temperature.
Over-temperature protection for BPT
Pure System Protect Monitor the conductivity of pure water at real-time
(Once the conductivity≥2us/cm, the machine will stop and alarm)
Protection to Radiation Xenon lamp will turn off automatically when opening the chamber door, in case xenon lamp radiate operator
Installing Environment Requirement
Power Source 380V土10%  3-phases 4 lines or 220V土10% 2-phase;
50 or 60Hz;Electric current≥60A
Air Outlet There should be air outlet in the indoor for convenient to connect vent pipe

Standard Accessories:

  • Xenon—1 pc (Can select Atlas or other Chinese brand)
  • Sensor—2 pcs (OSRAN)
  • Xenon Lamp Filter—1 set (Can select Atlas or other Chinese brand)
  • Simens Control System—1 set
  • Human-computre Interface—1 pc (Touch Screen)
  • Specimen Holders—65 pcs
  • Black Panel Temperatrue Holders—2 pcs (include 2 PT 100)
  • Irradiance Calibration Holder—1 pc

Optional Accessories:

BGD 8170 Purity Water System(50L/min)
BGD 8140 Radiometer(340nm)
BGD 8141 Radiometer(420nm)
BGD 8142 Radiometer(300~400nm)
