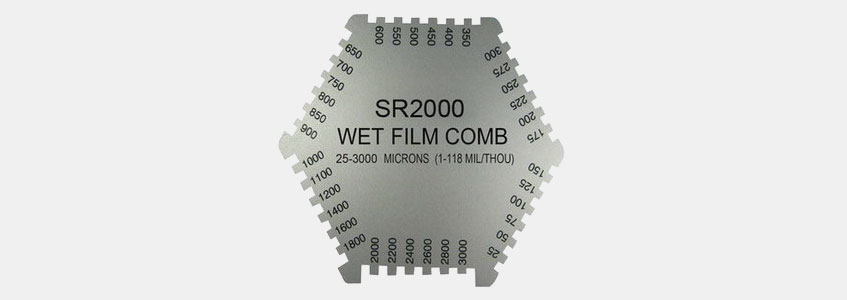

Hexagonal Wet Film Thickness Gauge

Synonym : WFT Gauge, Wet Paint Thickness Meter, Wet Film Thickness Gauge


Caltech India offers precision stainless steel Hexagonal Wet Film Thickness Gauge. Hexagonal wet film comb gauges are used for the quality control of wet film paint thickness measurements. These WFT gauges are supplied in micron / Thou Mill scales or dual micron. Wet film thickness gauges are also called as wet film comb. Wet film thickness gauges are available in different shapes (Square, Rectangular, Hexagonal, Octagonal). Stainless steel wet film gauges has excellent life, durability, long lasting and reusable.

Six sided hexagonal wet film comb are supplied in hexagonal size, giving 36 measurement steps on the comb, providing increased accuracy. Using a wet film comb perpendicular to and touching the substrate. Hold the comb in position and wait a few seconds until the teeth are wet. Remove the comb from the film. The wet film thickness lies between the biggest value ‘coated’ or ‘wet’ tooth and the smallest value ‘uncoated’ or ‘dry’ tooth.

These wft gauges assist painting contractors, paint manufcaturing companies, and users to comply with the requirement of exact coating thickness over painted surface. Wet film thickness gauge control the coating process in wet coat of paint / primer. Excess / under coating is not permitted in view of drawbacks like cracking, excess coating thickness. Wet film thickness gauge can pre-determine coating thickness while it is wet condition. This being a destructive test, many users test wft gauge on the sample of rectangular panel, measure wet film thickness and control process parameters. Punched aluminum wet film thickness gauges or plastic WFT gauges are not preferred due to bending properties and low accuracy of the gauge, however they are economical and handy.

Caltech Engineering Services india manufactures stainless steel hexagonal wet film comb are made from quality steel with specially engraved surface markings have a wide measurement range with high-resolution with measurement, catering for virtually all of the standard wet film thickness measurement requirements.

Caltech Engineering Services India also supply disposable plastic WFT gauges for minimum use, simply place the wft gauge in the wet paint and note the wet paint thickness, Allow paint to dry and retain for future ISO record or customer requirements.

ISO 2808-7B, BS 3900-C5 method 7B, ASTM D4414-A specify that the wet film comb should be perpendicular to the substrate and the thickness of the coating should be stated as lying between the shortest wet tooth and the longest dry tooth.

Range of Wet Film Comb :

 Stainless Steel Wet Film Thickness Gauges
CES G1 25µm to 600µm 24 teeth (Wet Film Thickness Gauge Rectangular)
CES G3 50 µm to 1200 µm 24 teeth (Wet Film Thickness Gauge Rectangular)
CES G6 25 µm to 3000 µm 36 teeth (Wet Film Thickness Gauge Hexagonal)
W1003 50µm to 5000µm 45 teeth (Wet Film Thickness Gauge Tricomb)
 Tricomb Disposable Wet Film Thickness Gauge
W2005 Range 50µm to 900µm 18 teeth (Wet Film Thickness Gauge Tricomb)

Always specify part number of wet film comb requirements in your order.
