V-Wac Gauge

Categories: ,

Description

Caltech India offers V-Wac Gauge by G.A.L. Gage Company – USA.

The V-WAC™ Gage easily and quickly checks the four essential measurements required for compliance with the NRC Visual Weld Acceptance Criteria. Checks undercut depth, porosity comparison, amount of porosity per linear inch and crown height. An essential and recommonded welding inspection gauges.

Quickly determines if fillet welds meet NRC Visual Weld Acceptance Criteria for Structural Weldments

GAL Gage Co. manufactured V-Wac Gauge can be purchased separately or as part of a complete set of seven fillet weld gauges that determine if your welds conform to specifications.

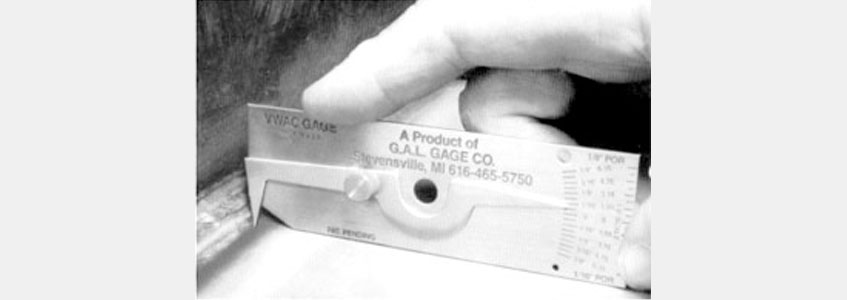

CHECKS UNDERCUT DEPTH

CHECKS UNDERCUT DEPTH

CHECKS AMOUNT OF POROSITY PER LINEAR INCH

CHECKS AMOUNT OF POROSITY PER LINEAR INCH

CHECKS POROSITY COMPARISON

CHECKS POROSITY COMPARISON

CHECKS CROWN HEIGHT

CHECKS CROWN HEIGHT

Features:

  • ACCURATE
    Undercut depth or crown height scale can be read to 1/32 inch.
    Porosity comparison of 1/8 inch and 1/16 inch. Linear gauge in 1/16 inch increments.
  • EASY TO USE
    Pointer is easy to set and a locking screw holds it in position for later reference.
    Figures and increments are etched into surface.
    They are easy to read and will not rub off.
  • FAST
    All four required measurements are made with a single gauge.
  • STURDY
    Gauge is made of stainless steel.
  • HANDY
    Gauge is 1¼ inches by 4 inches, and can be easily carried in your pocket.

Ordering Information:

GAL-5 Gauge with 1/64″ Tolerance
GAL-5-7 Gauge with WTPS Gauge and Block
GAL-5-8 Gauge Set
GAL-5-7-8 Gauge Set with WTPS Gauge and Block
GAL-5M Metric Gauge with 1/64″ Tolerance
