Description

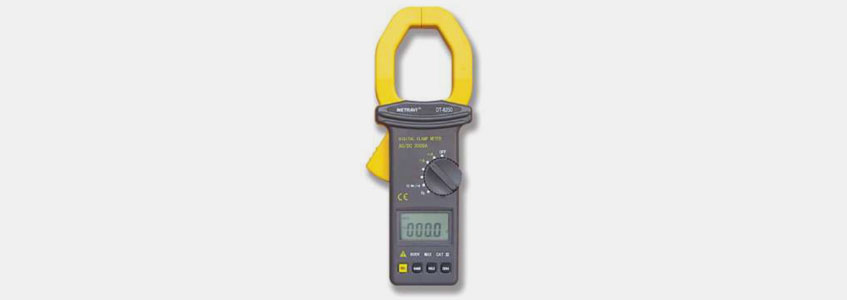

Caltech India offers Digital AC/DC Clamp Meter DT- 8250 is completely portable, 3-3/4 digital meter with AC/DC Voltage, Resistance and Frequency test functions. It is used in the laboratory, field servicing, at home and circumstance where high current measurement is required.
Features:
| Display | 3-3/4 Digits (4000 counts) LCD |
| Jaw opening | 57mm (Cable F 55mm/Bus bar: 70x7mm) |
| Auto-range | V, A, W, Hz functions/manual range (Except for Hz function) |
| Data Hold | Except for Hz function |
| Display updates | 3 times/sec |
| Battery | Low battery voltage indication Auto power-off (30 minutes) |
| Continuity check | Buzzer sound at less than about 30W. |
| Power requirement | Single standard 9V battery (IEC6LF22, NEDA 1604 or JIS006P) |
| Power consumption | 6mA |
| Operating environment | 0ºC~40ºC, 70%RH max |
| Storage environment | Storage environment |
| Dimensions | 240mm x 100mm x 50mm |
| Weight | Approx 610g. including battery |
| Accessories | One pair test leads, 9V battery, manual |
Electrical Specifications:
| Function | Range | Resolution | Frequency | Accuracy | Overload |
| AC Current | 400A 2000A |
0.1A 1A |
50-60Hz 50-60Hz |
± (2%rdg+5dgts) ± (2.5%rdg+5dgts) |
2200A (1 Min) |
| DC Current | 400A 2000A |
0.1A 1A |
± (2%rdg+5dgts) ± (2.5%rdg+5dgts) |
2200A (1 Min) |
|
| AC Voltage | 4V 40V 400V 750V |
0.001V 0.01V 0.1V 1V |
50-60Hz | ± (1.5%rdg+5dgts) | 800VAC |
| Input Impedance 10MΩ | 400V | 0.1V | 40-400Hz | ± (2.5%rdg+5dgts) | |
| DC Voltage Input Impedance 10MΩ |
4V 40V 400V 1000V |
0.001V 0.01V 0.1V 1V |
± (1%rdg+3dgts) | 1200VDC | |
| Resistance | 400.0Ω 40.00Ω 400.00Ω 4.000MΩ 40.00MΩ |
0.1Ω 0.01KΩ 0.1KΩ 1KΩ 10KΩ |
± (1%rdg+3dgts) ± (1%rdg+3dgts) ± (1%rdg+3dgts) ± (1.2%rdg+3dgts) ± (1.5%rdg+3dgts) |
500VAC | |
| Frequency | 99.99Hz 999.9Hz 9.999KHz 99.99KHz 999.9KHz 999.9KHz |
0.01Hz 0.1Hz 0.001KHz 0.01KHz 0.1KHz |
± (1%rdg+3dgts) Sensitivity: 5V rms Max: <10Vrm<s (10Hz=1MHz) <300Vrms(50Hz-60Hz) |
500VAC | |
| Diode | Test current: 0.6mA(appr.) Open vltage: 1.5V (typ) Resolution: 0.001V | 500VAC | |||
| Continuity | <30Ω | 500VAC | |||
Safety Precaution
This complies with pollution 2, CAT-III 600V of the IEC-1010-1 (EN61010-1) and UL3111-1 standards.
