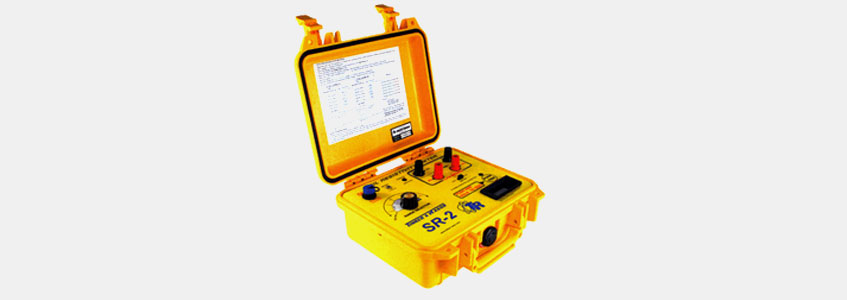

Soil Resistivity Meter SR-2 – Tinker & Rasor

Description

The Tinker & Rasor SR-2 Soil Resistivity Meter is highly accurate and easy to use with the 4-pin Wenner or 3-pin Fall Potential methods of soil resistance measurement.

A highly accurate and easy to use soil resistivity meter for use with the 2-pin and 4-pin (Wenner) methods of soil resistance measurement. A pin selector switch allows choosing between 2-pin and 4-pin tests without removing cables.

Model SR-2 provides easy resistance readings with a digital 4-1/2 digit display, push-button operation, and an easily adjusted Ohm to MOhm range selector. The display will show in the correct range. Multiply reading with pin spacing multiplier for Ohm-cm.

Use the SR-2 to find soil resistivity for a variety of cathodic protections applications, including pipelines, tanks, wells, etc. Also use for geological and archeological studies.

Features:

  • 4.5-digit display.
  • 0.01 Ohm to 3.3 MOhm ranges.
  • Simple push-button operation.
  • Weather / impact resistant Pelican case
  • Internal rechargeable 12V battery.
  • Low battery indicator.
  • AC adapter Quick instructions in lid of instrument. Up to 50-foot pin separations
  • 4-Pin “Wenner” method”
  • 3-Pin “Fall of Potential” method
  • 2-Pin method
  • 1-Pin “Single Rod” method
  • Data logger connection
  • (DL-1 data logger sold separately)
  • Tinker & Rasor SB-1 Soil Box (sold separately).

Specifications:

  • Resistivity Ranges: 0.01 Ohm to 3.3 MOhm
  • Accuracy: ±10%
  • Operating Temperature: 0-50ºC (32-122ºF)
  • Case: Pelican® long-life case with weather-sealed lid
  • Dimensions: 10.75″ x 10.75″ x 6.5″ (273 x 273 x 165 mm)
  • Operating Weight: 6 lbs
  • Shipping Weight: 7 lbs
