CP Half Cell Cu/CuSO4 – Tinker & Rasor – USA

Copper Sulfate Portable Half Cell – Tinker & Rasor

Description

Tinker & Rasor now offers a complete line of Copper – Copper Sulfate Reference Electrodes. Made of the most DURABLE PLASTICS, they will withstand severe abuse without damage. The Half Cells have a FULL VIEW WINDOW, which allows liquid level observation without removal of sealed ends..

The pre-saturated ceramic plugs are of a special design for LOWER EARTH RESISTANCE contact and also allow for easy probing in hard earth. These ceramic plugs provide a larger surface area than ever before.

Specification:

  • Copper stud – 4″-6″ -1/4-20 thread
  • Highest purity copper sulfate
  • Instructions
  • Custom made lengths up to 6′ (1.83 m) for any Model

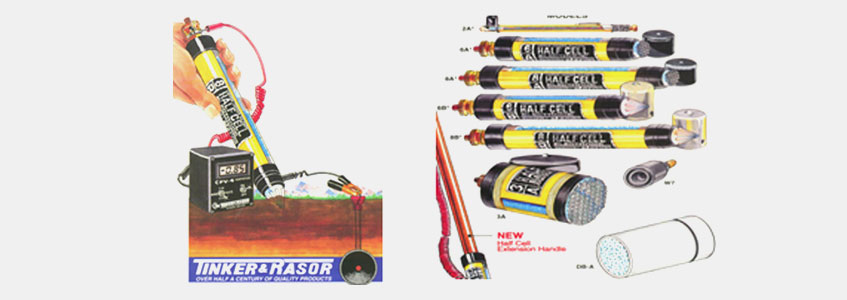

Standard Models:

2A 3/8″ x 5 3/4″, 1 oz 10 x 146 mm, 28 g
6A  1-1/4″ x 6″, 6 oz 32 x 152 mm, 168 kg
6B 1 1/4″ x 7″, 6oz 32 x 178mm, 168 g
8A 1-1/4″ x 8″, 8 oz 32 x 203 mm, 224 g
8B 1-1/4″ x 9″, 8 oz 32 x 229 mm, 224 g
3A 3″ x 5″, 16 oz 76 x 127mm – 448 g
DB-A 2 1/2″ x 6 3/4″ 32oz 64 x 171 mm – 896 g
W7 Submersible Adapter 1-1/4″ x 2-1/4″ 2oz 32 x 57 mm, 56 g

Features:

  • Special grooved ceramic plugs
  • Copper sulfate pre-saturated ceramic plugs
  • Bright yellow, indestructible plastic body
  • Thick threaded end plugs with “O” ring seals
  • Shipped with copper-sulfate crystals
  • Temperature stable
  • Indefinite shelf life
  • Fits all popular cathodic protection meters
  • Snug-fitting, thick plastic ceramic plug covers
  • Economically priced
  • Satisfaction guaranteed

Optional Accessories:

  • Waterproof adapter
  • Extension Handles to 3 feet
