Automatic Pull-Off Adhesion Tester

Synonym : Automatic Pull-Off Adhesion Gauge, adhesion strength, adhesive strength, adhesive strength testing, Adhesion Gauge, Adhesion, Adhesion Test, Coating Adhesion Test, Pull-Off Adhesion, Adhesion Tester, Adhesion Testing, Portable Adhesion Tester, Automatic Adhesion Tester, Adhesion Strength


Caltech India offers Automatic Digital Pull-off Adhesion Tester. There are currently three main methods for testing the adhesion of a coating to a substrate: cycling, cross-hatch, and pull-off. Both cycling and cross-hatch can only evaluate the grate of adhesion, but cannot quantify the results. The pull-off method can quantitatively describe the specific size of the adhesion, and it is clear to evaluate the adhesion of different coatings, which is very suitable for formulation developers.

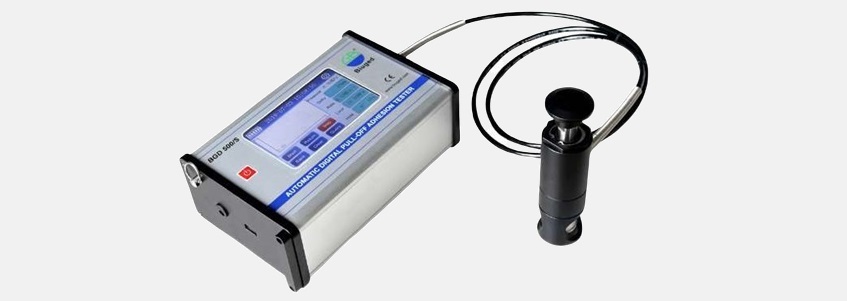

BGD 500/S Automatic Digital Pull-off Adhesion Tester is a new intelligent adhesion testing instrument. It hydraulically tests the coating of a specific area. The whole process of pull-off is automatically performed by the instrument. Therefore, the pull-off speed is stable and controllable, avoiding the error caused by manual pressurization; the pull-off force can be accurately displayed by the digital display, and there are two different units of MPa and psi to be selected; the upper limit of pressurization can be set; after reaching the set pressure, the dwell time can be set to evaluate the durability of the sample under a certain pressure.

The instrument meets the requirements of ASTM D4541/D7234, ISO 4624/16276-1, etc. It is the first automatic pull-off tester in China and has the characteristics of simple operation, accurate data, low maintenance cost and low cost of supporting consumables. Adhesion testing between different coatings in some concrete base coats, anti-corrosion coatings or multi-coat systems.

The test sample or system is applied to a flat surface having a uniform surface thickness. After the coating system is dried/cured, the test column is directly bonded to the surface of the coating with a special adhesive. After the adhesive is cured, the coating is pulled at a suitable speed by the instrument to test the force required to break the adhesion between the coating/substrate.

It is worth noting that the tensile force of the interfacial interface (adhesion failure) or the tensile force of the self-destruction (cohesive failure) is used to indicate the test results, and the adhesion/cohesive failure may occur simultaneously.

Main Technical Parameters:

  • Dolly Size : 20mm (Standard), 10mm, 14mm, 50mm (Optional)
  • Resolution: 0.01MPa(1psi)
  • Accuracy: ±1% Full scale
  • Max. Pull-off Pressure: Φ 10mm dolly →2.8-80MPa;Φ14mm dolly→1.4-40MPa;Φ20mm dolly→0.7-20MPa;
    Φ50mm dolly→0.4-3.5MPa
  • Pull-off Rate Set Range: 10mm dolly→0.4-6 MPa/s;14mm dolly→0.2-3 MPa/s;20mm dolly→0.1-1.5 MPa/s;
    50mm dolly→0.02-0.24MPa/s
  • Power: Built-in rechargeable lithium battery, and standard configuration charging adapter.
  • Tester Size (L x W x H):240mm×138mm×81mm
  • Tester Weight:4KG

Packing List:

  • Adhesion Tester with digital display
  • 20mm Aluminum test dollies(20 pcs)
  • Cutting toll for 20mm dollies,
  • 3M Adhesive and glue gun
  • Micro-USB cable
  • Operation Manual
  • Carrying case

Ordering Information:

Automatic Pull-Off Adhesion Tester
BGD 500/S Automatic Pull-Off Adhesion Tester
BGD 1522 20mm Dolly(10 pcs/package)
BGD 1526 Cutting Tool
BGD 1527 3M Adhesive
BGD 1520 10mm Dolly(10 pcs/package)
BGD 1521 20mm Dolly(10 pcs/package)
BGD 1523 50mm Dolly(5 pcs/package)
