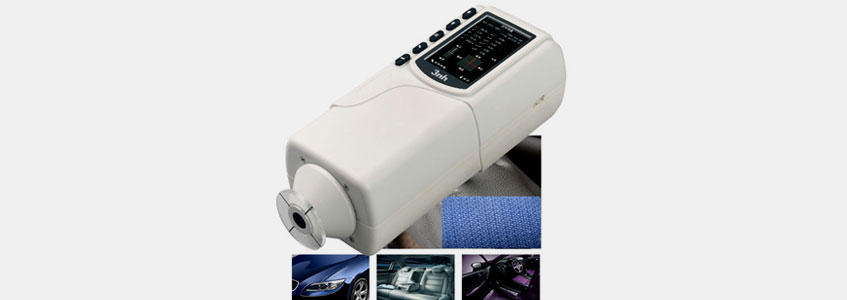

Caltech India offers NR145 is a precision colorimeter with 45°/0° viewing angle. It can measure accurately in 45° illumination /0° receiving under the SCE mode.
3nh R&D team concentrates on customer needs and develops series of high-cost and high-quality products. NR145 is a precision colorimeter with 45°/0° viewing angle after NH310, NH300, NR200, NR110 and NR100 colorimeter. NR145 colorimeter has strong functions which applied a number of differential innovative technologies. It can measure accurately in 45° illumination /0° receiving under the SCE mode. Plus, its CSCQ3 software helps perform color difference analysis, color difference cumulative analysis, chromaticity index, color sample database management, simulating object color, etc.
- Built-in white plate parameters. No need to calibrate each time which can perform measurement quickly.
- Double Locating: Illuminating locating and precise cross locating.
- Switchable Double Measurement End Face: Large stable end face and small concave-convex end face.
- New 45°/0° Optical Path Design: Significantly improve the measurement stability and precision.
- 8mm Measuring Aperture
- Equipped with rechargeable high-capacity Li-ion battery. No need to purchase battery repeatedly.
- Configure CQCS3 software. Connect PC computer to realize more functions.
- Having got SCM Metrological Certification, CE Certification, and ISO9001 Quality Management System Certification.
- Hand-head structure: small and convenient; make the measurement easier.
- Exquisite appearance: adopts traditional and fashionable aesthetic designs.
Main Technical Parameters:
|Model||NR145 Precision Colorimeter|
|Measurement End-face||Large stable end face and small concave-convex end face|
|Detector||Silicon photoelectric diode|
|Locating||Illuminating Locating/Cross Locating|
|Color Space||CIEL*a*b*C*h* CIEL*a*b* |
|Color Difference Formula||△E*ab △L*a*b* △E*C*h*|
|Light Source Device||LED blue light excitation|
|Errors Between Each Equipment||≤0.80ΔE*ab|
|Storage||100pcs standards 20000pcs samples|
|Repeatability||Standard deviation within ΔE*ab 0.08 |
Average of 30 measurements of standard white plate
|Power source||Rechargeable lithium-ion battery 3.7V@3200mAh|
|Lamp Life||5 years, more than 1.6 million measurements|
|Charging Time||The first charging time is 8 hours–100% electricity|
|PC Software||CQCS3 Software|
|Printer (optional)||Miniature thermal printer|
