Overhead Stirrers

Description

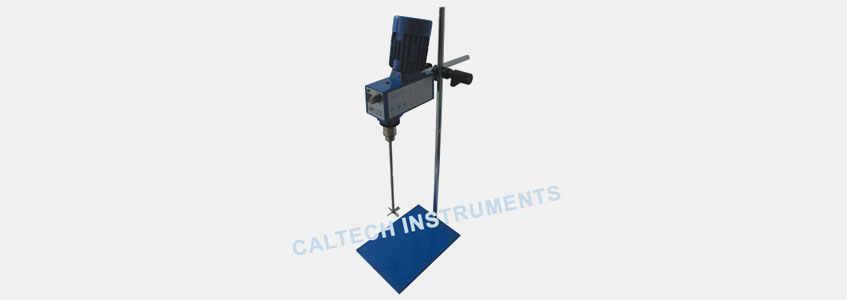

Caltech India offers BGD 718 Overhead Constant-Speed Stirrer. It adopt the newest technology, which can be used in the fields of biology , chemistry, cosmetic, health-care product food for liquid/ liquid mixing and emulsification, liquid/solid powder dispersing and pulpifing. The instrument can realize stepless adjustment by Friction wheel drive system, but motor is always running in a fixed working point, and motor powder speed and torque reach the optimization value at the point and remain constants.

Power is passed on stirring shaft by friction wheel and center shaft with a pair of plastic coupling devices. Two gear systems are configured in two same shafts, which form two manual adjustment speed (high speed and low speed). BGD 718 Overhead Constant-Speed Stirrer is the ideal equipment of scientific research, product development, quality control, product process application for research institutions, junior college, epidemic prevention and product manufacturing.

Main Technical Parameters:

  • Rated Voltage: 220V-250V
  • Output power: 150W
  • Working condition: long continuous work
  • Range: GradeⅠ:60~500 r/min;GradeⅡ:240~2000 r/min
  • Torque max. at stirring shaft: 1850 g.cm
  • Stirring Quantity max. : 20L(water)
  • Environmental Temperature: 5~40℃
  • Range at stirring shaft: 0.5-10mm
  • Viscosity range: 0-10,000mpas

Ordering Information:

BGD 718 Overhead Constant-Speed Stirrer
BGD 719 Digital Overhead Constant-Speed Stirrer
