Multi Purpose Gauge | Master Paint Plate

Synonym : Multipurpose Gauge, Master Paint Plate, Multitester, X Cut Knife Test, Cross Hatch Adhesion, Cross Hatch Tester, Cross Hatch Paint Adhesion Test


Caltech India offers Multi Purpose Gauge or Master Paint Plate a very useful gauge for cross cut adhesion testing as per ASTM D6677, ASTM D3359 Method A and ASTM D3359 method B standard. This gauge is also useful for determination of wet film thickness and also used to determine sagging properties. ASTM D3359 Test Method A is primarily intended for use at job sites while Test Method B is more suitable for use in the laboratory. Also, Test Method B is not considered suitable for films thicker than 5 mils (125μm)

One Gauge with following features:

  • Multi-purpose surface testing equipment: Cross-cut tester for the adhesion assessment of thin and thick single or multi coat systems in line with Test Method A and Test Method B. Applicator for the preparation of wedge-shaped layers of coating materials, sagging applicator for determining the sagging properties and wet-film thickness gauge for testing the film thickness.
  • 6 different cross-cut tests with easy positioning by use of vision panel integrated in one.
  • Instrument, amongst others the lattice pattern with 11 cuts according to ASTM D3359 method B
  • Made of stainless steel. Also prefered to use for X cut Knife test as per ASTM D6677

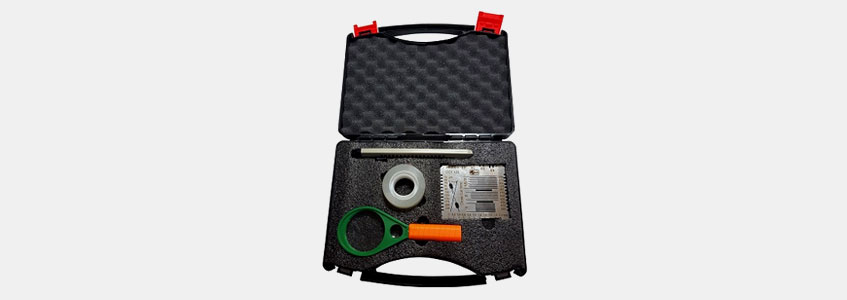

Ask for complete multi purpose gauge kit which includes multi-purpose gauge, slick knife, standard adhesive tape, magnifier and operating manual

Ordering Information:

Multi Purpose Gauge / Master Paint Plate
CCT123 Multi Purpose Gauge / Master Paint Plate
XA001 gap heights: 0 mm to 2 mm (0“ – 0.08“), sagging: 0.25 mm to 4.0 mm (0.01“ – 0.16“), wet film thickness: 50 µm to 500 µm (2.0 mil – 19.7 mil)
Standards ASTM D6677, ASTM D3359, EN ISO 2409, EN ISO 2808, EN ISO 3359

In India, we have various customers from Mumbai, Delhi, Bangalore, Chennai, Hyderabad, Ahmedabad, Kolkata, Surat, Pune, Jaipur, Lucknow, Kanpur, Nagpur, Visakhapatnam, Indore, Bhopal, Patna, Vadodara, Ghaziabad, Ludhiana, Coimbatore, Madurai, Nashik, Srinagar, Aurangabad, Dhanbad, Allahabad and Ranchi in India.
