Coating Thickness Gauge Ferrous & Non Ferrous

Synonym :


Caltech India offers Digital Coating Thickness Gauge CM-8826 FN model for both ferrous and non ferrous subsrtate materials.

Coating Thickness Gauge utilize non-destructive priciple with most eonomical choice that retains the uncompromising quality of Coating Inspection Instruments. We are largest seller of coating thickness gauge in India.

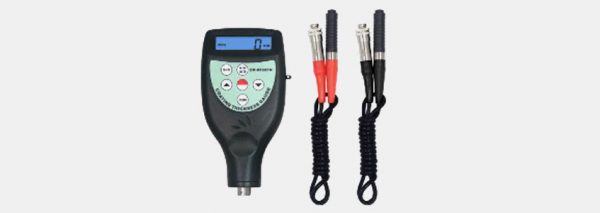

Caltech Engineering Services India offers CM-8826 Digital Coating Thickness Meter with F & N probes.

CM-8826 coating thickness gauge has dual technology features selection of magnetic induction or eddy current measurement techniques. Coating thickness gauge is a portable measuring instrument, can take fast, intact, precise measurement of coating thickness. It can not only be used in engineering field, laboratories, but also meet the demand of multiple measuring by using two separate probes for ferrous and non-ferrous substrates.


  • Works on Magnetic Induction and Eddy Current principle
  • Non-magnetic coatings (e.g. paint, zinc) on steel
  • Insulating coatings (e.g. paint) on no-ferrous metals
  • No-ferrous metals coatings on insulating substrates
  • Two measuring mode: CONTINUE and SINGLE
  • Two working Mode: DIRECT and GROUP
  • Automatic Power Off
  • Easy Calibrations
  • Low battery, error indication
  • Power supply: 4×1.5V AAA (UM-4)
  • Use RS-232 data output to connect with PC.
  • Provide Bluetooth data output choice.
  • Supplied with Calibration Iron, Calibration Aluminum, Calibration Foils, in a carrying case.


Sensor probe Ferrous Non Ferrous
Working principle Magnetic induction Eddy current principle
Measuring range 0~1250um 0~1250um
Guaranteed tolerance (of reading) (+/- 3%+1)um (+/- 3%+1.5)um
Low range Precision 0.1um 0.1um
Minimum curvature radius 1.5mm 3mm
Diameter of Minimum area 3mm 5mm
Basic critical thickness 0.5mm 0.3mm
Size(HxWxD) 113.5mm x 54mm x 27mm

Optional Accessories:

RS-232 Data cable with software, Bluetooth Data Adapter with software.

For further details please contact Caltech India

Ordering Information:

Coating Thickness Gauge
CM-8826FN Coating Thickness Gauge (Ferrous & Non Ferrous 1500 µm)
Coatem Coating Thickness Gauge ( Ferrous 0-1500 µm)
Coatem NFC Coating Thickness Gauge (Ferrous & Non Ferrous 1500 µm)
Coatem-3 Coating Thickness Gauge (Ferrous 0-3000 µm)
Coatem-6 Coating Thickness Gauge (Ferrous 0-6000µm)
Coatem NF Coating Thickness Gauge (Non Ferrous 0-1500 µm)
CF 1500 Calibration Foils
Fe Base Stainless Steel Zero Block

We have number of coating thickness gauges as per choice of customer.
