Plating Thickness Meter

Synonym : Electroplating Thickness Gauge, Electro Plating Thickness Measurement Meter

Description

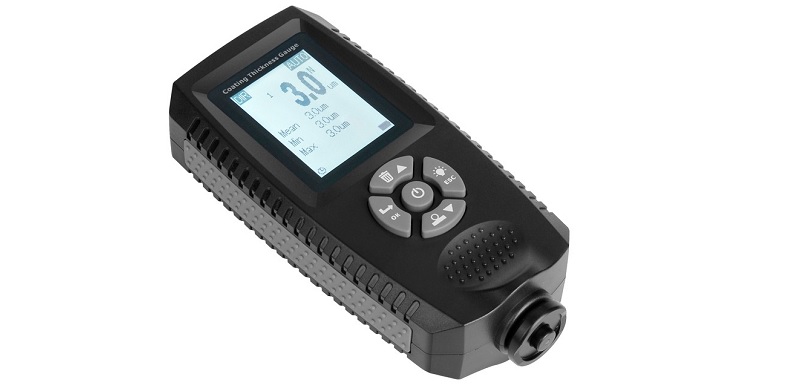

Caltech India offers EC-500X Plating Thickness Meter. This instrument operates dual technology features automatic selection of magnetic induction or eddy current measurement techniques. EC-500X can be used for non-destructive coating and plating thickness measurement of non-magnetic coatings, e.g. paint, enamel, chrome on steel, and insulating coatings, e.g. paint and anodizing coatings on non-ferrous metals.

Features:

  • Ultra-high accuracy testing for electroplating thickness
  • Range 0~500um, accuracy ±1%, ±1um
  • 128*128dots LCD display
  • Menu interface
  • LCD can be rotated to be used easily
  • Red LED alarm indication
  • LCD shows mean, maximum, minimum and standard deviation
  • User can set alarm limit
  • Readings can be stored, recalled and deleted
  • Easy to do zero calibration and support multi-point calibration
  • Connect with PC via USB and download readings
  • Multi-language supported
  • Up to 5 measurement groups supported
  • Automatically detect the substrates type(F or N)
  • Unit optional: um, mm and mils

Specifications:

Plating Thickness Meter

Model no. EC-500X
Probe type Fe, NFe
Principle Magnetic, Eddy currents
Range 0~500um, accuracy ±1%±1um
Accuracy ±(1%+1um)
Resolution 0.1um(<100um)
1um(others)
Readings memory 2000

For further details, please send your inquiry.
