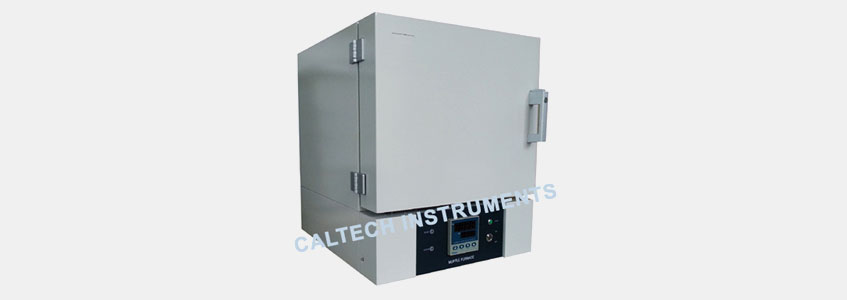

Muffle Kiln


The new generation box resistance oven is integrated with the Company’s years of experiences in design and manufacturing as well as foreign technologies. It is of various design patents and is especially supplied to the laboratories of factories, mines, universities and scientific research institutions for chemical element analysis and such high-temperature treatment as quenching, annealing and tempering of small castings. It can also be used for such high-temperature heating as baking, dissolving and analyzing of metals, graphite and ceramic.


  • Unique design of oven door for safe and easy operation to ensure that the high-temperature hot gas will not escape for inside the oven.
  • Inert gas inlet and outlet reserved in the chamber.
  • Micro-computer PID Controller: easy operation, accurate, reliable and safe control.
  • Inside lining of fire-door and box panel are both made of stainless steel materials and are featured for corrosion-resistance and free deformation under high temperature.
  • Light chamber for durable service (refractory-brick chamber and ceramic-fiber chamber are optional)
  • With excellent door seal, thermal loss is minimized and temperature evenness is increased in the chamber.
  • Optional 30-segment programmable controller, each segment can setup “heating” or “stop” and the circulation of programmed temperature, time heating power is provided.

Ordering Information:

ITEM Technical Item→
Ordering Information ↓
Max Temp(℃) Chamber Size W×P×H(mm) Capacity Power Input Power Heating Element
OVEN SX2-2.5-10 1,000 200×120×80 2L 220V/50HZ 2.5 KW heating  cord
SX2-4-10 1,000 300×200×120 7L 220V/50HZ 4 KW heating  cord
SX2-8-10 1,000 400×250×160 16L 380V/50HZ 8 KW heating  cord
SX2-10-10 1,000 300×200×300 18L 380V/50HZ 10 KW heating  cord
SX2-12-10 1,000 500×300×200 30L 380V/50HZ 12 KW heating  cord
SX2-2.5-12 1,200 200×120×80 2L 220V/50HZ 2.5 KW heating  cord
SX2-5-12 1,200 300×200×120 7L 220V/50HZ 5 KW heating  cord
SX2-10-12 1,200 400×250×160 16L 380V/50HZ 10 KW heating  cord
SX2-4-13 1,300 250×150×100 4L 220V/50HZ 4 KW heating  cord
SX2-6-13 1,300 400×200×160 13L 380V/50HZ 6 KW heating  cord
SX2-8-13 1,300 500×200×180 18L 380V/50HZ 8 KW heating  cord
SX2-8-16 1,600 300×150×120 5.4 L 380V/50HZ 8 KW Globar
SX2-12-16 1,600 400×250×160 13 L 380V/50HZ 12 KW Globar
Remarks ① For every chamber, we offer two types inner  material, one is“refractory-brick”,the other is “ceramic-fiber”, please mark it when you place order. ② Optional accessory: Programmable controller with 30-segments or 60-segments
