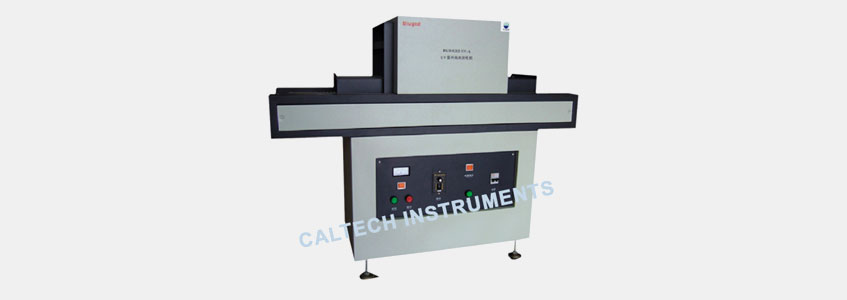

UV Solidify Machine


Caltech India offers UV Solidify Machine. It is used widely for UV paint, UV glue, UV inks, UV gloss ink ;It is small, economic and practical as its selling point, suitable for small batches, trial production or used in small enterprise and also is welcomed in painting, glue manufacturers for research and development.


  • Portable and small with one UV lamp installed, which is suitable for operation line and also handwork.
  • Easy to operate; one of mass production models, components selected are standardized; simple operation and maintenance with low cost;
  • Reasonable exhaust design with effective cooling system
  • Speed can be set free within the effective scope

Ordering Information:

Ordering Information  → BGD 8212 BGD 8213 BGD 8313 BGD 8222 BGD 8223 BGD 8323
Parameters ↓
Power supply 220VAC/50HZ 380VAC/50HZ
Total power 2.2KW 2.2KW 3.5KW 5.0KW 5.0KW 7.2KW
UV lamp Power 2KW 2KW 3KW 2KW 2KW 3KW
Number of Lamp 1 pc 1 pc 1 pc 2 pcs 2 pcs 2 pcs
speed range 0-10 m/min
Belt Material Stainless steel or TEFLON
Belt Width 200mm 300mm 300mm 200mm 300mm 300mm
Entrance Height 100mm
Cooling System Air Cooling
Main Wavelength 365 nm
Lamp Life 600hours , over 75% intensity
UV lamp type/Unit power High-pressure mercury lamp;100w/m

We also accept the special custom-made UV Solidify machine order!!
