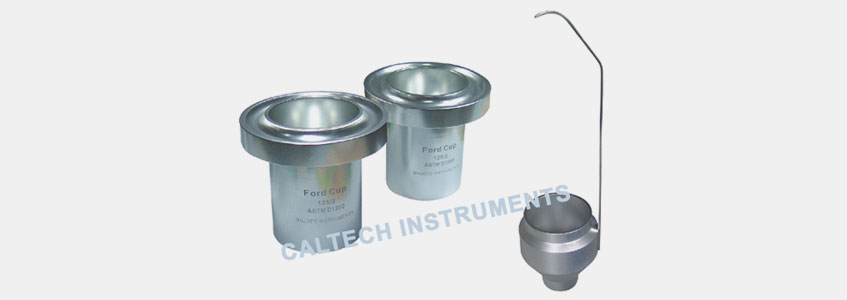

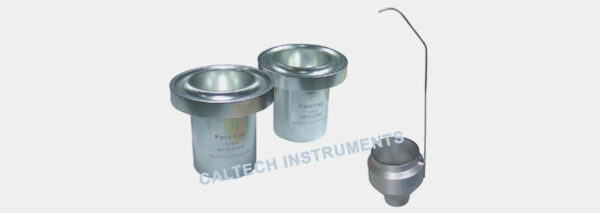

Ford Viscosity Flow Cups

Synonym :  Standard Ford Viscosity Cup, Viscosity Flow Cup, Ford Cup, Viscosity Cup, ford dip cup, mini ford dip cups, Ford Cup Viscometer


Caltech India offers Ford Cups. It is produced by our company are in accordance with International Standard ASTM D1200, D333, and D365. For easy measurement of the viscosity of paints, inks, lacquers and other liquids. All Ford cups are machined anodic oxidation aluminum with removable stainless steel orifice and are guaranteed to be within 2% throughout the recommended range of use.

Main Technical Parameters:

  • Internal Diameter:50±0.05mm
  • Outer Diameter:86±0.1mm
  • Internal Orifice Length:10±0.1mm
  • Production Tolerance:±2%

Ordering Information:

Details/Ford cup Ford Cup
Ford Cup
Ford Cup
Ford Cup
Portable Ford Cup (4#)
Internal Vertical Height 43±0.1mm 43±0.1mm 43±0.1mm 43±0.1mm 43±0.1mm
Internal Orifice ф(mm) 2.53 mm 3.4 mm 4.1 mm 5.2 mm 4.1 mm
External Orifice ф(mm) 5.0±0.5mm 5.5±0.5mm 6.0±0.5mm 7.6±0.5mm 6.0±0.5mm
Centistokes Range 25-120 49-220 70-370 215-1413 70-370
Efflux Time(sec)±0.2 40-100 25-105 20-105 20-105 20-105
Ordering Information BGD 125/2 BGD 125/3 BGD 125/4 BGD 125/5 BGD 125/4P

In India, we have various customers from Mumbai, Delhi, Bangalore, Chennai, Hyderabad, Ahmedabad, Kolkata, Surat, Pune, Jaipur, Lucknow, Kanpur, Nagpur, Visakhapatnam, Indore, Bhopal, Patna, Vadodara, Ghaziabad, Ludhiana, Coimbatore, Madurai, Nashik, Srinagar, Aurangabad, Dhanbad, Allahabad and Ranchi in India.
