Plastic Wet Film Thickness Gauge

Description

Caltech India offers Plastic Wet Film Thickness Gauge. disposable plastic wft gauge is designed for once only use, simply place in the wet paint note the wet paint thickness, Allow paint to dry and retain for future ISO record or customer requirements. All gauges have Micron / Thou / Mil scales. It conforms to BS 3900-C5, ISO 2808-7B and ASTM D4414-A Standards. Caltech’s wet film thickness gauge is designed to measure accurate liquid coating thickness in the easiest and fastest manner. It measures the thickness immediately after the coating has been applied on the material.WFT Gauge can also be used to measure powder coating thickness before it goes through curing. Wet film thickness is measured to determine the correct dry coating thickness.Wet film thickness gauges are also known as wet film gauges, notched gauges, step gauges and WFT combs.Disposable plastic wft gauge is designed for once only use, simply place in the wet paint note the wet paint thickness, Allow paint to dry and retain for future ISO record or customer requirements. All gauges have Micron / Thou / Mil scales as per BS 3900-C5, ISO 2808 and ASTM D4414 standards.

Ordering Information:

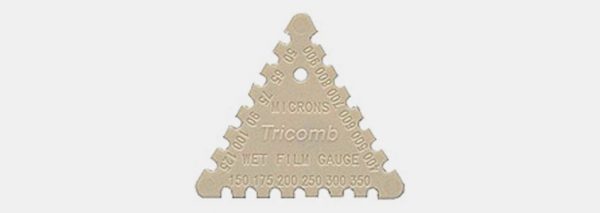

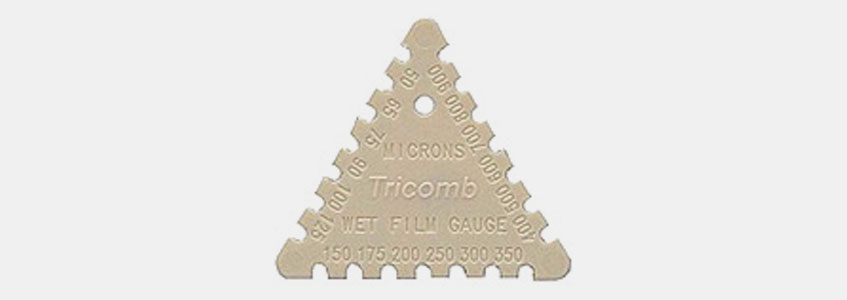

Tricomb Disposable Wet Film Thickness Gauge
 W2005 Range 50µm to 900µm 18 teeth
Stainless Steel Wet Film Thickness Gauge
 CES G1 Range from 25µm to 600µm 24 teeth
 CES G3 Range from 50µm to 1200µm 24 teeth
 CES G4 Range from 50µm to 5000µm 45 teeth
 CES G6 Range from 50µm to 3000µm 36 teeth

Always specify Stainless Steel or disposable plastic and WFT gauge number requirements in your order. We also provide Stainless Steel high accuracy WFT gauges and wheels. All the WFT gauges are highly economical priced.

In India, we have various customers from Mumbai, Delhi, Bangalore, Chennai, Hyderabad, Ahmedabad, Kolkata, Surat, Pune, Jaipur, Lucknow, Kanpur, Nagpur, Visakhapatnam, Indore, Bhopal, Patna, Vadodara, Ghaziabad, Ludhiana, Coimbatore, Madurai, Nashik, Srinagar, Aurangabad, Dhanbad, Allahabad and Ranchi in India.
