Bridge Cam Gauge

Categories: ,

Description

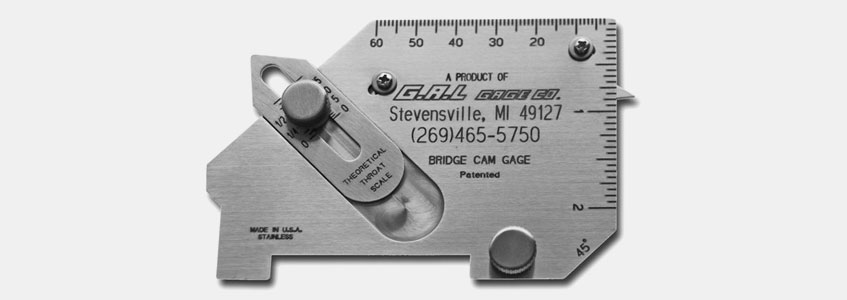

Caltech India offers Bridge Cam Gage for measurements are possible in either inches or millimeters: Angle of Preparation, Excess Weld Metal, Depth of Undercut, Depth of Pitting, Weld Throat Size, and more. GAL Gage Co – USA manufactured Welding Gauge is made of stainless steel and sturdy to measure undercut depth or crown height scale can be read to 1/32 inch.

Note: Adjustable scale to compensate for point wear

UNDERCUT

EXCESS WELD METAL

FILLET LEG LENGTH

FILLET WELD THROAT

ANGLE OF PREPARATION

MISALIGNMENT

The following measurements are possible either in inches or millimeters:

  • Angle of preparation, 0° to 60°
  • Excess weld metal (capping size)
  • Depth of undercut
  • Depth of pitting
  • Fillet weld throat size
  • Fillet weld length
  • Misalignment (high-low)
  • General linear measurements up to 60 mm or 2 inches.
  • Bridge Cam Gauge / TWI Welding Gauge / Cambridge Gauge / Universal Welding Gauges
  • Supplied in a case with instructions

Ordering Information:

GAL-4 Bridge Cam Gauge
