Linear Rubbing and Alcohol Abraser

Synonym : Linear Rubbing and Alcohol Abraser

Description

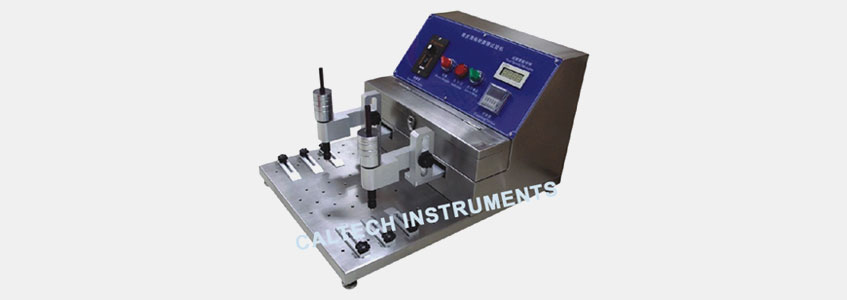

Caltech India offers BGD series Linear Rubbing And Alcohol Abraser is a universal machine that can practically perform many kind of linear abrasion rub or alcohol testing by attaching the required accessories and weights,Dry or Wet.(The Wet Rub Test requires a liquid dispenser with dripping control knob).

The Linear Rubbing And Alcohol Abraser is engineered to perform many International Standard Tests, such as Crocking Test, Eraser Test, Liquid/Solvent Rub Test, which make it a multifunctional rubbing machine.

Main Technical Parameters:

  • Selectable Speed:0-75 rpm/min(stepless speed control)
  • Stroke Length(mm):
    BGD 524: 10~50mm
    BGD 525: 0~75mm
  • Weight:
    BGD 524:Two sets , each set includes 25g, 50g,100g, 200g, 500g
    BGD 525:Two sets , each set includes 10g, 20g, 50g, 100g, 200g, 300g, 500g
  • Calculation range: 1-9999 times
  • Overall dimensions:500×350×550mm(L×W×H)
  • Weight of whole machine:25KG

Ordering Information:

BGD 524 Linear Rubbing and Alcohol Abraser
( with adding alcohol device )
BGD 525 Linear Rubbing and Alcohol Abraser
( with big working table and all made of stainless steel ).
BGD 1361 EF 74 Special rub for testing (12 pcs/box)
BGD 1362 75215-NO 74 Special rub for testing (12 pcs/box)
BGD 1361 7017R Special rub for testing (12 pcs/box)
