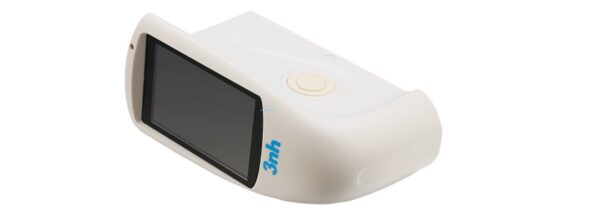

NHG60 60 Degree Glossmeter

Description

Caltech India offers NHG60 60 Degree Glossmeter Touch Screen with Software.

NHG60 gloss meter features with 60° angle, manufactured according to ISO2813 and GB/T 9754. It is also compatible with the standards of ASTM D523, ASTM D2457. NHG60 conforms to JJG696 first class gloss meter working requirement, corresponding with CIE 1931(2°) under CIE C light source.

NHG60 gloss meter can test material with gloss (0-1000Gu), and universally apply to paint, ink, stoving varnish, coating, wood products; marble, granite, vitrified polished tile, pottery brick and porcelain; plastic, paper; hardware industries, etc. for gloss measurement and gloss data transmission.

It is equivalent to micro-gloss 60° BYK Gardner 4561.

Features:

1.       60° angle for semi gloss

2.       Display 5 sets of measurement data, good for comparison

3.       Measuring mode: basic measurement, statistical measurement, continuous measurement, QC measurement (only for GQC6 software).

4.       Continuous mode to check uniformity over large areas

5.       Connect to PC, more extend functions

6.       Input gloss value manually

7.       Large touch screen operation, easy to use

8.       Beauty appearance, good man-machine communication interface

9.       Powerful functions to meet many different requirements

10.   Large storage to save over 5000 data

11.   Built-in lithium ion rechargeable battery.

Technical Specifications:

NHG60 60° Precise Gloss Meter

Model

NHG60 60 degree gloss meter

Measure Angle

60°
Comply with standard ISO 2813、GB/T 9754、ASTM D 523、ASTM D 2457

Measuring Area (mm)

9X15

Measurement Range

0~1000GU

Division Value

0.1GU

Measurement Range                       Repeatability                                                Reproducibility

0-10GU            10-100GU      100-1000GU
± 0.1GU           ± 0.2GU           ± 0.2%GU
± 0.2GU           ± 0.5GU           ± 0.5%GU

Measurement Standard

Conform with JJG696 first class gloss meter working requirement

Chromaticity Corresponding

Corresponding with CIE 1931(2°) under CIE C light source

Errors

±1.2 , ± 1.2%

Measuring Time

0.5s

Dimension

L*W*H : 160mm*75mm*90mm

Weight

350g

Language

Chinese/English

Battery

3200mAh Li-ion Battery, >10000 times(within 8 hours)

Viewing Screen

TFT 3.5 inch, capacitive touch screen

Interface

USB/RS-232

Data Save

Basic mode: 1000, Statistical Mode: 5000, Continuous mode : 5000

Software

GQC6 Quality Control Software with QC report printing functions and more extended functions.

Operation Temperature

0~40℃(32~104°F)

Storage Temperature

 -20~50℃(-4~122°F)

Humidity

<85% relative humidity, no condensation

Standard Accessories

Power Adapter, USB cable, User Manual, CD (Including QC software), Calibration Plate

Optional Accessories

Miniature Printer

Note

The specifications are subject to change without notice.

We also provide Repair & Calibration Services of Gloss Meter. To know more about gloss meter price in India and Worldwide. Contact us.

In India, we have various customers from Mumbai, Delhi, Bangalore, Chennai, Hyderabad, Ahmedabad, Kolkata, Surat, Pune, Jaipur, Lucknow, Kanpur, Nagpur, Visakhapatnam, Indore, Bhopal, Patna, Vadodara, Ghaziabad, Ludhiana, Coimbatore, Madurai, Nashik, Srinagar, Aurangabad, Dhanbad, Allahabad and Ranchi in India.
