Wire Bar Coaters

Synonym : Wire Bar Coater, Wire Rod Applicator

Description

Caltech India offers Wire Bar Coaters. The wire and its rod from the wire-rod applicators are made of stainless steel,which are corrosion-resistance. A coating (Paint or Ink) is being drawdown by a known thickness wire-rod applicator over a substrate (eg. Black/White Test Chart, Glass or Wood Panel, etc.) onto our Drawdown Board. The motion of the drawdown is done by gripping the 2 edges of the applicator or by using the Holder (for BGD 211 Wire Rod Applicators only)

These applicators provide an economical way to assure the uniformity of thickness of very thin films.

  • Bar and wire manufactured of stainless steel
  • Perfect for very thin films, e. g. foils and paper coating tests
  • Ideal for flexible materials such as paper, cardboard, test charts, foils, leather, textiles, etc.
  • Maximum attainable wet film thickness engraved on bar end
  • Simultaneous drawdown of several samples side by side is possible

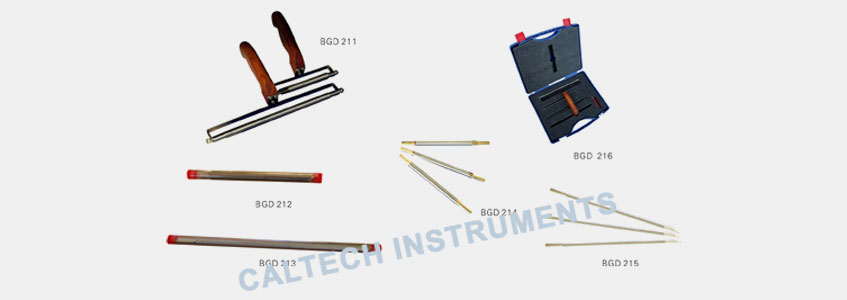

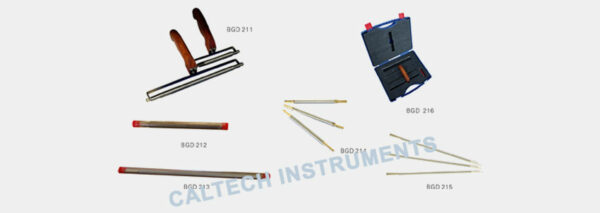

BGD Wire Bar Coaters

Main Technical Parameters:

  • Biuged instruments offer two different diameter types bar:

    • Dia 10mm—-for BGD 211, BGD 212 and BGD 123
    • Dia 9mm—-for BGD 214, BGD 215

Ordering Information:

Wire Bar Coaters

Ordering Information Effective Wire-Wounding Length (mm) Total Length (mm) Gripping Space (mm)-Left/Right Wet Film Thickness (µm) available
BGD 211/6…200 100 130 Oct-20 6-8-10-12-15-20-25-30-40-50-60-80-100-120-150-200
BGD 212/12…200 200 240 20/20
BGD 213/12…200 300 400 47/47
BGD 214/6…50 100 200 40/40 6-8-10-12-15-20-25
BGD 215/6…50 200 300 42/42
BGD 1151 Holder for BGD 211
BGD 1152 Holder for BGD 212

In India, we have various customers from Mumbai, Delhi, Bangalore, Chennai, Hyderabad, Ahmedabad, Kolkata, Surat, Pune, Jaipur, Lucknow, Kanpur, Nagpur, Visakhapatnam, Indore, Bhopal, Patna, Vadodara, Ghaziabad, Ludhiana, Coimbatore, Madurai, Nashik, Srinagar, Aurangabad, Dhanbad, Allahabad and Ranchi in India.
