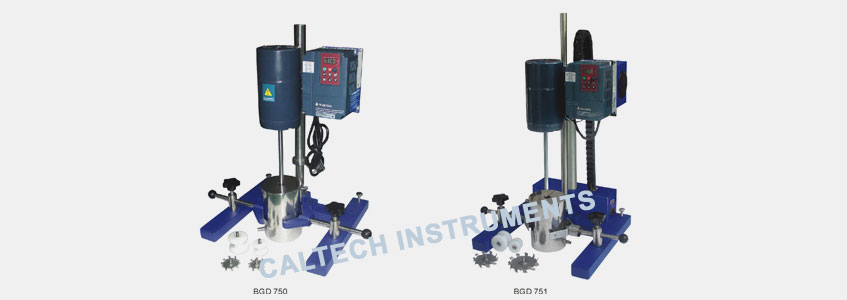

Versatile Sand-Milling Dispersing-Agitator

Description

BGD 750 series Versatile Sand-Milling dispersing-agitator is a new product designed by our company. It is equipped with two sand-milling discs, two dispersing blades and a double-layer stainless steel container. With only one machine, operator can finish such as sand-milling, high speed dispersing and mixing. Furthermore, electric lift design is very convenient for female operator.

Features:

  • With squirrel-cage motor of frequency control and use frequency converter to adjust working speed
  • Direct digits display axis revolution through display screen of frequency converter installed on the machine.
  • No carbon brush, no produce any flame when working
  • Lower noise, bigger torque and wider adjustable speed
  • Main parts are all made up of stainless steel, with perfect corrosion resistance
  • Standard confirguration:Two different size dispersing baldes , two different size sand-milling blades , a stainless steel double jacket container.
  • Power Supply:220V 50HZ
  • 550W and 750W is bench-structure, size is 45×42×65 cm; Others are consol mode structure and size is 64×57×133 cm

Ordering Information:

Ordering Information Motor Power Speed
(r/min)
Container Capacity Lift Distance Lift System Dispersing blade Sand-Mill blade
BGD 750/1 550W 100-7,500 1.5 L 220 mm Spring lift by hand 50mm&60mm 45mm&60mm
BGD 750/2 750W 100-6,000 1.5 L 270 mm Spring lift by hand 50mm&60mm 45mm&60mm
BGD 750/3 1,100W 100-5,000 3 L 340 mm Electric 60mm&80mm 90mm&100mm
BGD 750/4 1,500W 100-5,000 3 L 340 mm Electric 80mm&100mm 90mm&100mm
BGD 750/5 2,200W 100-4,000 5 L 340 mm Electric 100mm&120mm 100mm&130mm
BGD 751/1 550W 100-7,500 1.5 L 300 mm Electric 50mm&60mm 45mm&60mm
BGD 751/2 750W 100-6,000 1.5 L 300 mm Electric 50mm&60mm 45mm&60mm
