Printing Proofer

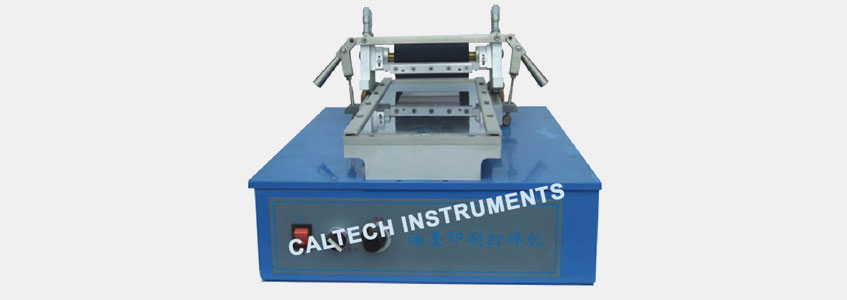

High quality proofs using gravure, gravure-offset or flexo inks are produced instantly using the BGD Printing Proofer. Featuring electronically engraved printing plates and variable printing speeds of up to 45m/min, this is an essential tool for all those involved in the manufacturing or use of liquid inks. Ideal for R &D and computer colour matching data, quality control and presentation samples. And these Printing Proofers are very easy to clean and all parts are solvent resistant.


  • Almost any flexible substrate can be printed or laminated
  • Excellent printability ensured by micrometer control
  • Multiple ink samples may be printed simultaneously for comparison purposes
  • High printing speeds enable use of inks nearing press viscosity

Main Technical Parameters:

Ordering Information →
Parameter ↓
BGD 622/1 BGD 622/2 BGD 622/3
Applicable for Gravure Ink Flexographic Ink Water based Inks
Motor Power 120W 120W 70W
Impression roller Φ76×130mm Φ50×130mm Φ19×153mm
Roller Hardness Shore A  55 Shore A  50 Shore A  45~50
Printing Speed Four sorts :20-30-40-45m/min Four sorts:20-30-40-45m/min 4-15 m/min (Adjustable variable speed)
Printing Length 150mm 150mm 180mm
Power 220V 50Hz 220V 50Hz 220V 50Hz
Overall Size 500×425×350mm 500×425×350mm 500×425×240mm
Wight 26kg 27kg 20kg

Printing Plate:

Printing plates for use with the Printing Proofer are electronically engraved in exactly the same way as production cylinders. A choice of one or more of the standard plates available will normally be satisfactory.

TYPE Number of Lines (Lines/inch) Density (%) Remark
A1 150 100 Solid Area Plate
A2* 100 100
B1 150 100-80-60 Single 3 Wedge Plate
B2* 150 100-90-80
C1 150 100-90-80-70 90 1+4 Wedge plate
C2* 300 100-90-80-70 90
C3* 175 100-90-80-70 90
C4* 175 80-60-40-20 100
D1 150 100-95-90-85-80-75-70-60 100-95-90-85-80-75-70-60 Double 8 Wedge Plate
D2* 150 40-35-30-25-20-15-10-5 80-75-70-65-60-55-50-45

Note: “*” are special plates and need custom-made
