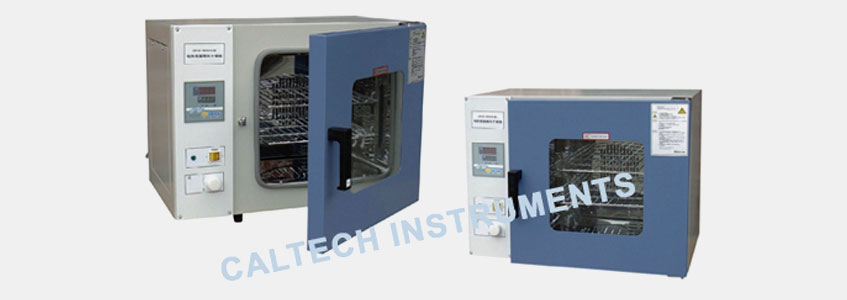

Description
Main Technical Parameters:
- Interior of oven is made of special stainless steel by argon-arc-welding technology, and the exterior of oven is made of high-quality steel sheet with a beautiful and novel appearance.
- Microprocessor PID temperature controller with temperature control protection, digits display and timing function ensures a precise and reliable temperature control.（intelligent programmable LCD temperature controller is an option）
- Hot-air circulating system consists of a fan keeping running under a high temperature and proper air ducts to ensure a uniform distribution a high temperature in chamber
- Independent alarm system for temperature-limiting ensures experiments run safely and no accident would happen.（Option）
- Recorder and printer are options which can print or record set parameters and trace variation curves of temperature.（Option）
- Temperature Stability： ±1℃
- Temperature Control： 0.1℃
- Timing Range： 1~9999min
Ordering Information:
| Technical Item→ | Electrical | Temperature | Power | Cubage | Interior Dimension | Overall Dimension | Shelves per Chamber/Norma |
| Ordering Information ↓ | Supply | Range | (mm)W×D×H | (mm)W×D×H | |||
| BGD 802 | 220V 50HZ | RT+10-250℃ | 850W | 30L | 340×320×320 | 620×530×490 | 2 pcs |
| BGD 804 | 220V 50HZ | RT+10-300℃ | 850W | 30L | 340×320×320 | 620×530×490 | 2 pcs |
| BGD 806 | 220V 50HZ | RT+10-300℃ | 1100W | 50L | 420×395×350 | 720×590×520 | 2 pcs |
| BGD 808 | 220V 50HZ | RT+10-250℃ | 1550W | 80L | 450×400×450 | 740×618×630 | 2 pcs |
| BGD 810 | 220V 50HZ | RT+10-300℃ | 1550W | 80L | 450×400×450 | 740×618×630 | 2 pcs |
| BGD 812 | 220V 50HZ | RT+10-250℃ | 2050W | 136L | 550×450×550 | 840×670×730 | 2 pcs |
| BGD 814 | 220V 50HZ | RT+10-300℃ | 2050W | 136L | 550×450×550 | 840×670×730 | 2 pcs |
| BGD 816 | 220V 50HZ | RT+10-250℃ | 2450W | 220L | 600×500×750 | 880×720×930 | 2 pcs |
| BGD 818 | 220V 50HZ | RT+10-300℃ | 2450W | 220L | 600×500×750 | 880×720×930 | 2 pcs |
| BGD 820 | 380V 50HZ | RT+10-250℃ | 3100W | 420L | 640×585×1355 | 780×750×1880 | 2 pcs |
| BGD 822 | 380V 50HZ | RT+10-300℃ | 3100W | 420L | 640×585×1355 | 780×750×1880 | 2 pcs |
| BGD 824 | 380V 50HZ | RT+10-250℃ | 4000W | 620L | 840×600×1355 | 980×800×1880 | 3 pcs |
| BGD 826 | 380V 50HZ | RT+10-300℃ | 4000W | 620L | 840×600×1355 | 980×800×1880 | 3 pcs |
| BGD 827/1 | 220V 50HZ | RT+10-400℃ | 2500W | 50L | 350×350×400 | 540×660×615 | 2 pcs |
| BGD 827/2 | 220V 50HZ | RT+10-500℃ | 2500W | 50L | 350×350×400 | 540×660×615 | 2 pcs |
| BGD 828/1 | 220V 50HZ | RT+10-400℃ | 3000W | 100L | 450×450×450 | 620×745×645 | 2 pcs |
| BGD 828/2 | 220V 50HZ | RT+10-500℃ | 3000W | 100L | 450×450×450 | 620×745×645 | 2 pcs |
| BGD 829/1 | 220V 50HZ | RT+10-400℃ | 3500W | 220L | 600×600×600 | 650×750×750 | 2 pcs |
| BGD 829/2 | 220V 50HZ | RT+10-500℃ | 3500W | 220L | 600×600×600 | 650×750×750 | 2 pcs |
