Hegman Gauge / Fineness of Grind Gauge

Synonym : Hegman Gauge, Grind Gauge, Particle Size Gauge


Caltech India offers hegman gauge or grind gauge. Hegman gauge is a important tool in measuring parameter of fine solid particle size or thick liquids.

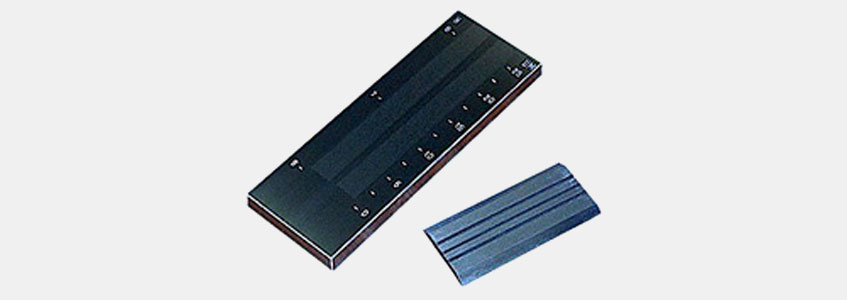

Fineness of Grind Gauge (Hegman Gauge) is a precision gauge manufactured from hardened stainless steel and has two ground channels giving scales of both microns and hegman. Fineness of Grind Gauge is supplied complete with scraper blade.

Hegman gauges are available in three models 0 to 25 micron, 0 to 50 micron, 0 to 100 micron.

Grind Gauge / Hegman Gauge / Particle Size Gauge is used for the checking and controlling the production, storage, and application of dispersion products produced by milling in the paint, plastic, pigment, printing ink, paper, talcum ceramic, pharmaceutical, food, chemical and many other industries.In operation the samples are placed into the top end of the grind gauge and then drawn down using the scraper blade.

Particle Size Gauge will have one scale marked in either mils or microns. The hegman scale or National standard scale may be abbreviated”NS” on the gage. The scale ranges from 0 to 8 with numbers increasing as the particle size decreases.
0 Hegman = 4 mil/100 micron particle size
4 Hegman = 2 mil/50 micron particle size
9 8 Hegman = 0 mil/0 micron particle size

Associated standards are: ISO 1524, DIN 53-203, ASTM D1210, ASTM D1316, ASTM D333.

Ordering Information:

L1000 0 to 25 micron scale
L1001 0 to 50 micron scale
L1002 0 to 100 micron scale
