Portable Conductivity Meter


BGD 293 Portable Conductivity Meter is used widely for laboratory or field measurement of the conductivity of liquid.

Clear-coated Charts

  • Built-in microprocessor chips, intelligent functions such as automatic calibration, automatic temperature compensation, data storage, function set-up, automatic power-off and low voltage display.
  • Automatic identification of 8 conductivity standard calibration solutions, two options of standard calibration solutions: Europe and America series and China series.
  • Adopt advanced conductivity measurement technology, use conductivity electrode of constant K=1, only need one point calibration and meet the measurement precision requirement of 0.5μS/cm ~ 200 mS/cm.
  • Ability to switch among conductivity, TDS, salinity and resistivity. Multinomial calculation for TDS and salinity to ensure the conversion precision of the full scale.
  • Conductivity measurement mode has the function of non-linear temperature compensation for high purity water.
  • Plastic conductivity electrode with automatic temperature compensation, fast response and accurate result.
  • Meter meets IP57 rating waterproof standard, equipped with calibration solution and portable case.

Main Technical Parameters:

  • Measuring range: 0 ~ 2 × 105 μ S / cm
  • Resolution:0.01/0.1/1μS/cm; 0.01/0.1 mS/cm
  • Accuracy:Meter:±1.0% FS, Overall:±1.5% FS
  • Temp. compensation range:(0 ~ 50)℃(manual)
  • Data storage:200 groups (Series number, measuring value measuring unit and temperature)
  • Power:Two AA batteries (1.5V x2)
  • Meter size and weight:120×65×31mm(L×W×H);180g
  • Package size and weight:360×270×76mm(L×W×H);1.6kg

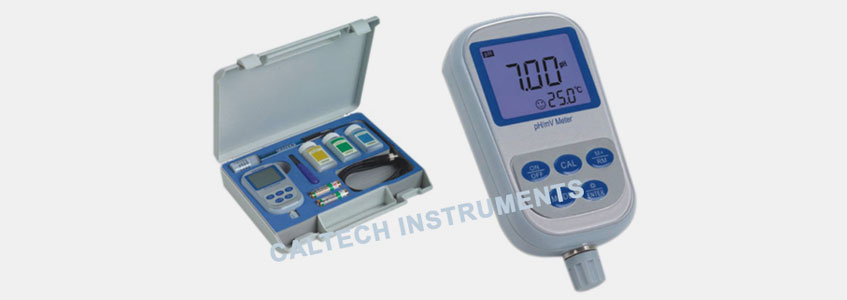

  • Standard kit includes:
    ① BGD 293 pH/mV meter (1 unit)
    ② Plastic conductivity electrode (1 pc)
    ③ 1,413μS/cm conductivity standard solution (50mL)
    ④ Spare AA batteries (2 pcs)

Ordering Information:

BGD 293 Portable Conductivity Meter
BGD 1175/3 Plastic conductivity electrode
BGD 1176/3 Glass conductivity electrode
