Multi-Mode Ultrasonic Thickness Gauge

Synonym :


Caltech India offers MT-660 Multi-mode Ultrasonic Thickness Gauge with through coating PE EE two modes width Measuring Instrument.

The model MT- 660 is a multi-mode ultrasonic thickness gauge. Based on the same operating principles as SONAR, the instrument is capable of measuring the thickness of various materials with accuracy as high as 0.1/0.01 millimeters. The Multi-mode feature of the gauge allows the user to toggle between pulse-echo mode (flow and pit detection), and echo-echo mode (eliminate paint or coating thickness)

Model MT-660 Capable of performing measurements on a wide range of material, including metals, plastic, ceramics, composites, epoxies, glass and other ultrasonic wave well-conductive materials. Transducer models are available for special application, including for coarse grain material and high temperature applications

Multi-mode: Pulse-Echo mode (P-E mode) and Echo-Echo mode (E-E mode). In Echo-Echo mode, it can test the wall thickness eliminating paint or coating thickness. Wide measuring range:Pulse-Echo mode: (0.65~600)mm (in Steel). Echo-Echo mode: (3~100)mm V-Path correction to compensate the nonlinearity of the probe. It has function for online transfer of the measured data to PC via USB.

Technical Specifications:

Model MT-660

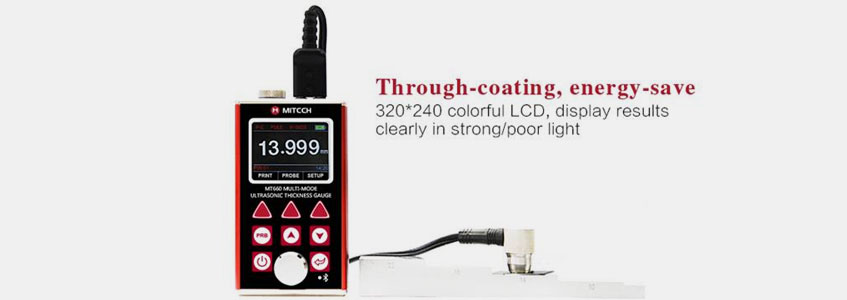

Display 320×240 TFT color LCD screen, adjustable backlight brightness
Measuring Range Two Working Modes:  Pulse-Echo mode: (0.65~600)mm (in Steel). Echo-Echo mode: (3~100)mm
Sound Velocity Range 1000~9999 m/s
Resolution 0.1mm/0.01mm/0.001mm switchable
Accuracy ±(0.04mm (≤10mm): ±0.4%H(>10mm)
Calibration Zero Point Calibration, Two Point Calibration
Working Modes Single Point Measurement, scan model measurement min/max measurement, differential measurement
Units Metric / English unit selectable
Memory Memory upto 100 files (upto 100 values for each file) of stored value
Communication Interface Support Bluetooth and USB2.0 communication, the host program can be uploaded online
Data Printing Capable of measuring Standard prtable Bluetooth thermal printer to print the measurement report
Power Supply Two “AA” size, 1.5 volt alkaline batteries. 100 hours typical operating time (EL backlight off)
Automatic It has auto screen standby, auto sleep, auto shutdown and other power saving functions.
Material Aluminium –magnesium Alloy
Dimension 120 x 67 x 31 mm
Net Weight 317 g

Transducer Selection:

Model Frequency MHz Diameter mm Measuring Range Lower limit(work area) Description
N02 2.5 14 3.0 mm – 300.0 mm (in Steel) 20 mm For thick, highly attenuating, or highly scattering materials
N05 5 10 1.2 mm – 230.0 mm (in Steel) Ø20 mm × 3.0 mm Normal Measurement
N05/90° 5 10 1.2 mm – 230.0 mm (in Steel) Ø20 mm × 3.0 mm Normal Measurement
N07 7 6 0.75 mm – 80.0 mm (in Steel) Ø15 mm × 2.0 mm For thin pipe wall or small curvature pipe wall measurement
HT5 5 14 3.0 – 200.0mm (in Steel) 30 mm For high temperature (lower than 300 °C) measurement

For further details please contact us or send email.
