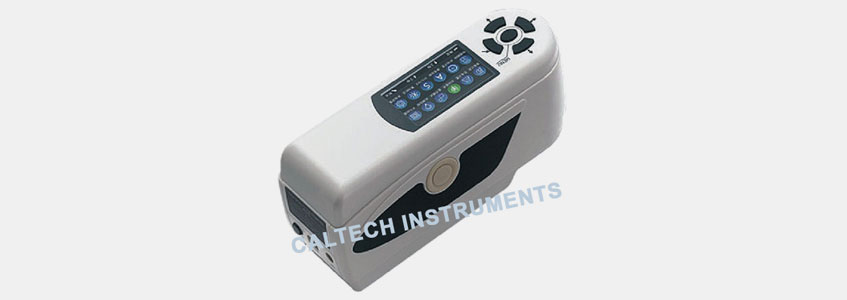

Precise Computer Colorimeter


Since 1998, from import to domestic, BGD 556 precise colorimeter is an iconic milestone in color test industry.

High-End Brand of Colorimeter

BGD 556 is a mainstream brand colorimeter introduced by BIUGED which has synthesized the advantages of ten more traditional imported colorimeters and has experienced ten thousands tests and applied many innovative technologies. Accurate, Stable, Exquisite and Affordable!

The Preferred Solution for Color Quality Control Management

BGD 556 high-quality portable colorimeter has adopted multi-channelcolor sensors of international brands, more stable IC platform as well asefficient and accurate algorithms to provide users with accurate and fast color management and application. BGD 556 is also designed with ergonomics and humanized operation and it has applied for a number of patents. BGD 556 is a multifunctional colorimeter with high quality and competitive price. BIUGED insistson independent research whose technology innovation is unique in color management field. BGD 556 is the most convenient colorimeter for users.

Leading Humanity Design and Convenient Operation

  • Auto White and Black Calibration at Startup
  • Structure design in line with Ergonomics
  • Fool-style Operation Interface

Stable Measurement Performance

  • The average fluctuation of △E is less than 0.06, actually more in 0.03~0.05.
  • Portable structure design which is more conductive to keeping the instrument stable whenusing.

Flexible and Accurate Locating

  • Camera locating can solve the problem of locating a small area. The minimum width of locating is 4mm.
  • Illumination locating is a fast, simple and convenient locating function which is the original function by 3nh.

More Measurement Modes

  • Three measuring apertures for more circumstances.
  • Five color spaces for more color schemes selection.
  • Three light sources for more circumstances.

PC Software – Realize More Function Expansion

  • BIUGED has the intellectual property of PC software. The corresponding software serial number and password protection are configured in BGD colorimeter.
  • Be able to perform color difference analysis, color difference cumulative analysis, chromaticity index, color sample data base management, simulating object color, etc.

Advance Power Management Design

  • BIUGED is the first enterprise using high capacityLi-ion battery in colorimeter.
  • BIUGED Li-ion battery can berepeatedly charged which will save cost. Meanwhile, it can measure more than3000 times on one charge to ensure the stability of long time measurement.
  • National Patent and Innovative Technology
    No.1 Camera locating andillumination location; New functions of double locating
    No. 2 Built-in white plate;Automatic calibration at startup
    No. 3 Extended aperture (optional), available formeasuring concave surface

Technical Parameters:

Illuminating/Viewing  Geometry 8/d
Measuring  Aperture Φ8mm/Φ4mm
Detector Silicon photoelectric diode
Color Space CIEL*a*b*C*h* ;CIEL*a*b*;CIEXYZ;CIERGB; CIEL*u*v*; CIEL*C*h;Yellowness & Whiteness ;Color Fastness
Color  Difference Formula △E*a b;△L*a*b*;△E*C*h*;△ECIE94;△E hunter
Light Source D65;D60;A
Light Source  Device LED blue light excitation
Errors Between  Each Equipment ≤0.40ΔE*a b
Storage 100pcs standards; 20000pcs samples
Repeatability Standard deviation within  △E* a b 0.06
(Average of 30  measurements of standard white plate)
Language English/Chinese
Weight 500g
Dimension 205×70×100 mm
Power source Rechargeable lithium-ion battery 3.7V@3200mAh
Lamp Life 5 years, more than 1.6 million measurements
Charging Time 8 hours–100% electricity
Measuring  Times Before  Recharging 3000 times in 8 hours
Operating Environment -10~40℃, relative humidity 0~85% with no condensation
PC Software CQCS3 Software
Data Interface USB
Extended  Aperture (Optional) Φ8mm extended aperture,  available for measuring concave surface
Printer(Optional) Miniature thermal printer

CQCS3 Color Analysis Software
