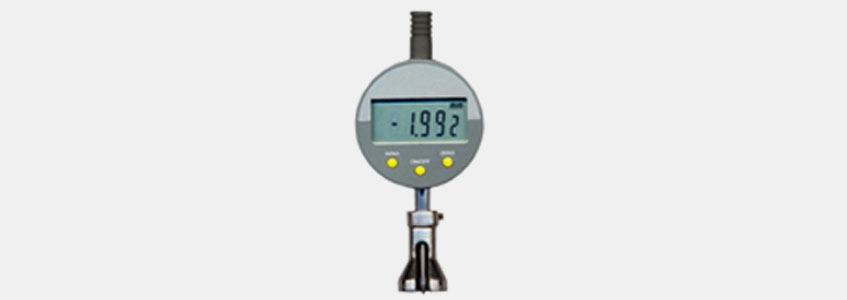

Digital Surface Profile Gauge

Synonym : Surface Profile Gauge, Surface Roughness Gauge, Surface Profile Meter, Surface Profile Needle Gauge, Measuring Surface Profile


Caltech India offers digital surface profile gauge for blasting. Digital surface profile gauge will allow the peak to valley height of blast cleaned surfaces to be accurately measured in accordance with the ASTM D4417 Standard. Caltech’s digital surface profile gauge or needle gauge is highly useful and users friendly tool for paint, coating, and corrosion inspection. Surface profile gauge provides surface profile measuring technology for measuring profile on either flat or curved surfaces

The surface profile gauge is initially set to zero with the glass zero plate and the foot is then placed on the blasted profile. The foot sits on top of the peaks and the sharp stylus travels to the bottom of the valley, allowing the gauge to display the peak to valley height. A number of measurement can be made and the average taken.

In addition the gauge can also be used to measure the effects of corrosion i.e. pitting and cavity depth etc. Instrument is supplied with calibration certificate traceable to national standards. Surface Profile Gauges are also known as surface profile needle gauge.

Caltech Engineering Services – India supplied digital surface gauge comes in carrying case with Glass Zero Plate, Alen Key, and Battery fitted available at economical price.

An Analogue Surface Profile Gauge is also available.

Ordering Information:

Surface Profile Gauge
R1005 Analogue Surface Profile Gauge  Range: 0-1000µm  Resolution: 2 µm
R1020 Digital Surface Profile Gauge  Range: 0-1000µm  Resolution: 1µm
